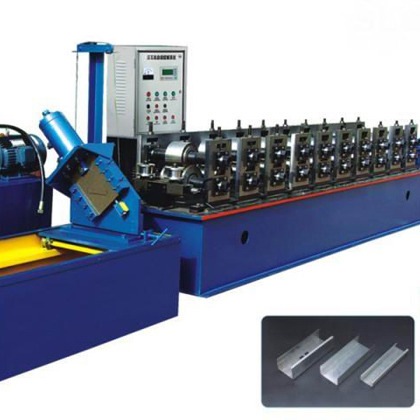

Metal Drywall CW UW Sheet Roll Forming Machine Prices

1.0 Sets
MOQ
$11,000.00(>=1 Sets)
Price
Metal Drywall CW UW Sheet Roll Forming Machine Prices
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1 Year
Applicable Industries: Building Material Shops, Construction Works
Showroom Location: None
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas
Product Name: Servo Light Gauge Steel Omega Channel Cold Roll Forming Machine
Motor Brand: Panasonic, Mitsubishi, Schneider, Siemens,Detal
Control System: PLC Control System
Usage: Produce C Z Purlin Panel
Cutting Type: Automatic Hydraulic Cutting/Flying Saws Cutting
Material Of Rollers: Cr12mov
Inner Diameter Of Coil: 400~600mm
Producing Speed: 25-35m/min
Shaft Diameter: 40mm/50mm
Basic Infomation
Payment & Shipping Terms
Packaging Details: sea worthy package, plastic film packed machine
Supply Ability: 50 Set/Sets per Month
Product Description
Product Description

Metal Drywall CW UW Sheet Roll Forming Machine Prices  Product Application

high quality servo cutting china professional facotry light gauge steel omega channel cold roll forming machine's introduction
1.the main parts:

    1) roll forming machine

    2)molding press

    3)cutting machine

    4)PLC computer control

    5)hydraulic system.
2. The machine is stable,no noise,no shake.
3. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable
4. cutting machine is characterized by stable driving, easy operation.
5. hydraulic system use hydraulic pump, long operating life,no noise.
6. material: galvanized,colored steel or aluminum coil
7. We can make and design the kinds of roll forming machine according to customer's request.

Specifications for Metal Drywall CW UW Sheet Roll Forming Machine Prices

Manual Un-coiler
Max Capacity: 5000kgs
Inner diameter of coil:400-600mm
Manual with brake

Leveling Device
Ensure the material level and straight
The width can be adjusted














Main Forming System
Width & Height & Thickness of sheet: According to Drawings
Material: GI sheet coil or Colored sheet coil
Motor Power: 5.5 kw forming system
Roller material:Cr12
Surface of Roller: Heat treatment HRC 58-60
Diameter of main shaft: 60mm #45 steel, heat treat modulation
Forming station: 12 stations.
Transmission: by chain and gear
Measuring accuracy: +/- 0.5 mm/M.
Arch middle plate: 30mm thickness.
Output: 8-10 Tons per shift (8 hrs.).
The machine base is assembled and welded by high quality steel.
Cutting way: Tracking (Flying)..
Oil pump station: 1set
Motor power of Oil pump station: 7.5kw with cooling system
Forced air cooling device available.
Cutting mould: 1 sets
Material of blade: CR12 with heat treatment HRC60-62.
Electrical System
Control system: HMI & PLC control panel
Power: 380V 50Hz (as per local requirement)
Run-out Table
Frame: 8# steel groove welded
Roller type
Quantity: 1 pc

Metal Drywall CW UW Sheet Roll Forming Machine Prices Main Features

1.Professional: rich experience in product and export process!
2.Low price:Save your money from every part!
  a.Low labor cost
  b.Convenient transportation;

  c. Complete supporting industries
3.PLC: Ensuring high accuracy and easy to operate!
4.Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine automatically produce the product you need!

Detailed Images

Metal Drywall CW UW Sheet Roll Forming Machine Prices Machine's rollers

Machine rollers

Roller Material:Roller material:Cr12.

Surface of Roller: Heat treatment HRC58-60.

Forming station: 12 stations.

Metal Drywall CW UW Sheet Roll Forming Machine's

 Hydraulic Pump

Name: hydraulic pump
Cutting way: Tracking (Flying)..
Oil pump station: 1set
Motor power of Oil pump station: 7.5kw with cooling system.

Metal Drywall CW UW Sheet Roll Forming Machine's Feeding and Leveling Device

Name: feeding and leveling device
It used for making the material flat before feeding into the roll forming machine
2 rollers(1 upper and 1 lower)
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Metal Drywall CW UW Sheet Roll Forming Machine's Computer Control Cabinet

PLC manufacturer: Siemens
Touch Screen monitor: Siemens
Encoder : Omron (Location: it is after profile formation)
Switch: Omron
Oil hydraulic cylinder: taiwei
Oil pipeline: parkers
Length variation: +/-2mm
Tolerance for hole to hole distance: +/-1mm
