Features

Specifications

Applicable Industries: Building Material Shops, Manufacturing Plant, Construction WorksÂ

Showroom Location: Philippines, India, Mexico, Russia, UAE, South Africa, Malaysia

Condition: New

Type: Tile Forming Machine

Tile Type: Steel

Use: FLOOR

Production Capacity: 100%

Voltage: 380V

Dimension(L*W*H): 9X1.2X1.5M

Weight: 5 Kg

Warranty: 1 Year, One Year

Key Selling Points: Automatic

Rolling Thinckness: 0.3-0.8mm

Feeding Width: 1220mm

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: Bearing, PLC

After-sales Service Provided: Engineers Available To Service Machinery Overseas, Free Spare Parts, Field Installation, Commissioning And Training

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: Philippines, India, Russia

Certification: CE

Basic Infomation

Certification: CE

Payment & Shipping Terms

Packaging Details: container packing of the machine, and proper packing for the overseas shipping.

Supply Ability: 100 Set/Sets per Month

Product Description

floor deck roll forming
1.PLC computer control
2.operation is easy
3.running is steady and reliable
4.applies to buliding

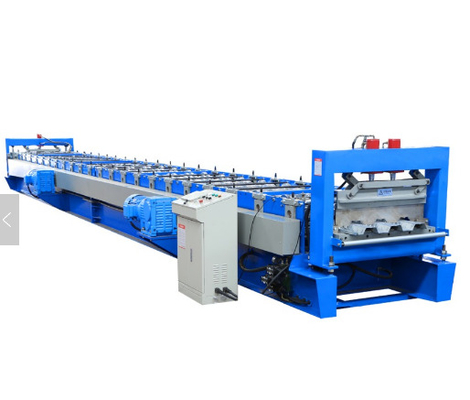

Floor Deck Roll Forming Machine

Model:688 Floor Deck

Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Panasonic Inverter
Main Frame	400mm H-Beam
Main Power	18.5 kw
Pump Power	7.5 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	8-10m/min
Roll Station	24 stands
Roller Diameter	95mm
Hydraulic Pressure	18-20MPa
Forming Size	688mm
Feeding Thickness	0.3-0.8mm
Feeding Width	1000mm
Backboard Thickness	22mm
Chain Size	66mm
Cutter Standard	Cr12
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	15000×1200×1100mm
Total Weight	19T

All technical parameters can be changed,according to user's need.
