Building Construction 2-Hi Steel Sheet Leveler Machine Plate Leveler Machine Leveling Machine China High Quality

1 Set
MOQ
$20,000.00(>=1 Sets)
Price
Building Construction 2-Hi Steel Sheet Leveler Machine Plate Leveler Machine Leveling Machine China High Quality
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Straightener
Condition: New
Use: Sheet
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Engine, Gearbox, Motor, Pressure Vessel, Gear
Voltage: 220v/380V/440V
Power: 11~132kW
Dimension(L*W*H): 500*850*900
Warranty: 1 Year
Key Selling Points: Easy To Operate
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location: None
Product Name: Steel Bar Straightening
Name: Auto Steel Bar Straightener
Usage: Metal Sheet Strip Coil
Application: Building Construction
Material: Steel Material
Function: Feed Metal Sheet Strip Forth
Product Keywords: Rebar Straighter
Keyword: Hydraulic Steel Bar Straightening Cutting Machine
Other Name: Straightener Unit
Machine Type: Straighteninger
After-sales Service Provided: Video Technical Support, Online Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Certification: ISO9001
Weight: 10-1400T
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Product Description

Performance characteristics:

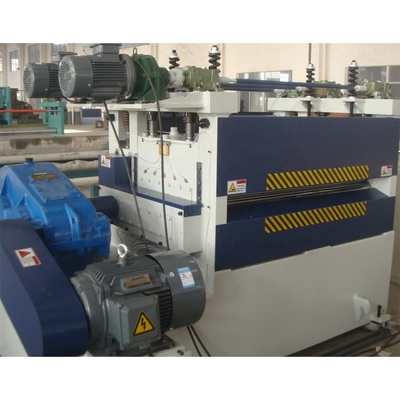

◆This machine tool is a special equipment for roll metal sheet leveling, usually composed of power, host and electrical control. Using the multi-roller working principle, the sheet material is repeatedly deformed between the upper and lower leveling rollers to eliminate stress and achieve the purpose of leveling. On the outer side of the upper and lower rows of work rolls, rigid support rolls (wheels) are arranged to form a four-fold roll-group structure. The sheet material is leveled by this machine, which can significantly improve its flatness and improve the quality of the workpiece. It can work independently for the leveling of single plates; it can also be equipped with uncoiling and leading in front of the machine, and cutting, stacking and on-line mechanism at the back, which can be connected to a complete production line through the control system to perform processing on metal coils. Leveling and slitting.
Name
Unit
Optional Range
Plate thickness
mm
0.3~1.5;0.5~3.0;1.0~5.0;1.5~6.0;2.0~8.0;3.0~12;4.0~16;6.0~20;8.0~25
Standard width
mm
800;1000;1300;1600;2000;2500
Leveler rollers number
Pcs
7~19
Leveler roller dia.
mm
55~250
Support rollers number
Pcs
1~5
Slitting precision
mm/m2
1.0~2.0
Leveling speed
m/min
5~30
Main motor power
kW
11~132
