Production Chile 840 And 836 Corrugated Roll And Roof Sheet Bolivia Trapezium Roof Panel Forming Machine

1 Set
MOQ
Production Chile 840 And 836 Corrugated Roll And Roof Sheet Bolivia Trapezium Roof Panel Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Farms, Home Use
Showroom Location: Brazil, Indonesia, Mexico, Russia
Condition: New
Type: Tile Forming Machine
Tile Type: Colored
Use: ROOF
Production Capacity: 15 M/min
Voltage: 220V 60Hz 3Phase
Dimension(L*W*H): 7000*1500*1500mm
Weight: 5 Kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Rolling Thinckness: 0.3-0.8mm
Feeding Width: 1000mm, 1000mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC
Product Name: Chile And Bolivia 840 836 Corrugated Roll Forming Machine
Raw Material: Color Steel Sheet
Roller Material: High Grade 45# Steel
Shaft Material: 45# Steel Outer Diameter: 75mm
Cutting Blade Material: Cr 12 High Grade Steel
Control System: Taiwan Delta
Thickness: 0.3--0.8mm
Main Frame: 300H Steel
Application: Roof Sheet Production
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Indonesia, Russia
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Nude with plastic film coated
Product Description
Product Description
Corrugated roll forming machine is popular in Africa and South America. There are two main kinds of corrugated tiles. We can find out difference from thickness. One is produced by corrugated sheet making machine. The thickness is from 0.25-0.8mm. Another is 0.14-0.24mm made by Barrel corrugated roll forming machine. Here, will show normal thickness for corrugated roof roll forming machine. And this corrugated roll forming machine is made for Bolivia and Chile.
Name
Chile and Bolivia 840 trapezoid roof panel and 836 corrugated roll forming machine
Material
Color steel
Material width
1000mm( 914/1219/1220/1250mm customized)
Control system
Full automatic Delta brand system
Capacity
1. 8-15m/min
2. 16-27m/min
Thickness
0.3-0.8mm( 0.3-0.6mm)
Drawings
使用说明
Corrugated roof roll forming machine is popular in the world. As you know, different countries, different popular tiles. There are many kinds of coils. Feeding width means the width of steel coil:
762/914/1000/1200/1220/1250mm. The Effective width means: The width of corrugated sheet: 608/760/836/988/988/1064mm. And the price of corrugated machine is changed with the width of material coil.

  • Description of corrugated sheet

  • 使用效果描述

The height of the corrugated sheet is 18mm. The pitch is 76mm. There are many similar drawings for corrugated. But most people use lower height of corrugated sheet to cheat their clients. Because lower height, lower price of machine. So when ordering, you must confirm the drawing what is same in your market
Detailed Images

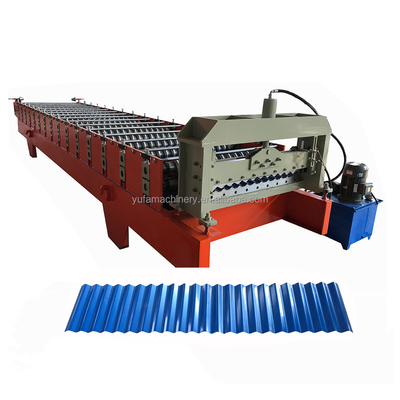

Automatic corrugated roll forming machine line including: the roll forming machine body; Control box. Hydraulic pump for cutthing and manual decoiler. So you can start your business.
Related Products
After Sales Service
Company Introduction
Hebei Yufa Tile Press Equipment Co.,Ltd. is one professional manufacturer for roll forming machine. We are established in June 1996. We have four branch factories, Tianjin Yufada Industry Co.,Ltd is located in Tianjin city. Hebei Yufa Tile Press Equipment Co.,Ltd and Hebei Yufa Roll Forming Machinery Co.,Ltd are located in Cangzhou city, Hebei Province. Beiing Yufa Pengxiang Floor Bearing Plate Produce Co.,Ltd is located in Beijing city. Our main business is customized roll forming machine. We would like to design and produce customized roll forming machine with clients. Our purpose is “Client is first,Service is first”. Service is after-sale service. We are 24 hours on line for all of our clients. We pay our attention to service after you receive the roll forming machine. We have confidence in helping you to be stronger and stronger.
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacture with four branch factories.

2. Q: How should I do if I would like to order my machine
A: Send me your design drawing if you have.
Or tell me your design idea. I arrange my engineer to drawing it for your confirmation.

3. Q: What details of the machine you should get from me.
A: I will confirm all details with you, such as the voltage in your city.

4. Q: I am new in this field. How could i understand the machine very well
A: Why not contact me whatsapp: 008615031898708/008616632710788. I promise you that you will be professional after you get from me. It is true
thing.

5. Q: I receive a lot of quotations, they are big range, How could i choose?
A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for
contacting with me.

6. Q: Can you give me one suggestion for ordering the machine.
A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

7. Q: I have not whatsapp and skype, how could I contact with you
A: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.

8. Q: What do you think what is the most important for roll forming machine
A: Drawing ! Drawing ! Drawing

9. Q: Can you use other brand of spare parts for me if i want.
A: No problem if you want to pay the money.
