Building Material Stores Metal Deck Floor Roll Forming Equipment Fabricator Steel Floor Deck Perforated Sheet Machine

1 Set
MOQ
$34,000.00(1 - 1 Sets) $33,000.00(2 - 2 Sets) $32,000.00(>=3 Sets)
Price
Building Material Stores Metal Deck Floor Roll Forming Equipment Fabricator Steel Floor Deck Perforated Sheet Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works
Showroom Location: Peru, India
Condition: New
Type: Tile Forming Machine
Tile Type: Steel
Use: ROOF
Production Capacity: 15 M/min
Voltage: 380v
Dimension(L*W*H): 12000x1600x1500mm
Weight: 12tons
Warranty: 1 Year
Key Selling Points: High Safety Level
Rolling Thinckness: 0.8-1.5mm
Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm, Other
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1.5 Years
Core Components: Motor, Gearbox
Raw Material: GI GL
Roller Material: High Grade 45# Steel
Shaft Material: 45# Steel
Cutting Blade Material: Cr 12 Mov
Control System: PLC Control
Plc: DETLA Or Siemens Or Schneider
Cutting Type: Automatic Hydraulic Cutting
Decoiler: 5T Manual Decoiler
Main Frame: 350mm/400mm H-Beam
Roller: 18-22rows
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location: Peru, India
After-sales Service Provided: Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Certification: ISO , BV For Roof Roll Forming Machine
Basic Infomation
Certification: ISO , BV for roof roll forming machine
Payment & Shipping Terms
Packaging Details: According to customer's requirement
Supply Ability: 600 Set/Sets per Year
Product Description
PRODUCT OVERVIEW

Flooring Deck Tile Roll Forming Machine


The floor deck tile making machine can form the flat sheet into a customized shape, the material of floor deck sheet is galvanized
steel.
The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure
workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand
theaters, large supermarkets, logistics centers, Olympic venues and gymnasium Steel structures.
FEATURE OF PRODUCT
More efficient and accurate execution of production orders；
High equipment reliability；
Little waste of materials and energy；
High productivity；
High quality materials, get a longer service life；
All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll；
Customized coil processing solutions to solve all aspects of technical problems.
Product Paramenters
No.
Item
Unit
Parameter
Remark
1
Material
Type

GL; G550
As Required
2
Thickness of Material
mm
0.8-1.5mm
As Required
2
Material Width
mm
914-1450mm
As Required
3
Production Speed
m/min
12-15m/min
Adjustable
4
Effective Width of Product
mm
760-1260mm

5
Roller Material

45#
Chromium plating if necessary
6
Drive Type

By Chains/Gear/GearBox

7
Motor Power
kw
26

8
Brand of Electric Control System

Delta or Siemens Or Schneider
As Required
9
Dimension(L*W*H)
m
7.5*1.45*1.5
Depends
10
Warranty
Month
15

Production process
Uncoiling→ Feeding material into machine →Roll forming → Auto shearing →Products receiving table

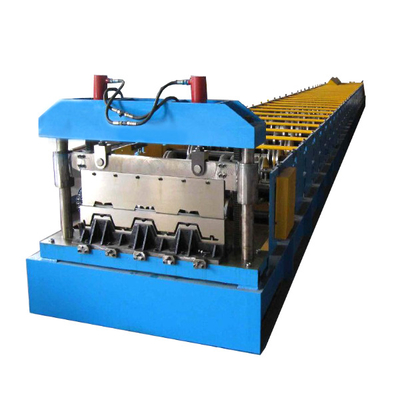

Main Roll Forming Machine

The main technical parameter of floor deck roll forming machine:

Rolling station numner: 28 staitions
Driving motor power: 22kw (two motor driving)
Roller material: Cr15
Shaft diameter: 95mm
Encoder brand: Omron
Hydraulic Cutter System

We adopt the three cutters on cutting system, this kind of cutting can prevent the product sheet deformed after cutting, and it's
with a very low sounds.
The disadvantage is that will have 2cm material waste for each cutting.
The hydrualic oil pump station is equipped with the cooling system. The cooling system can ensure the machine working
for hours continuously even working in a high temperature.
PLC Control Canbinet
The whole set floor deck roll forming machine is controled by the PLC control station, the brand of PLC can be Delta, Siemens,
Mitsubishi or other brand.
The language of control panel can be English, Spanish, Arabic and others, we can make it according to customers requests,
PART OF DRAWING PROFILE
Application scenarios
Why Choose Us

1.Unique coil processing solutions for metal working?

General Industry tech Hebei Developing Co., Ltd is aimed at providing our customers with the best quality metal rolling automation solutions and after-sale s service.

2. Equipment research and developing

Our company commits to provide customized coil processing solution according to each customer's specific metalworking process. With experienced technical technical team and continuous researching investment, we are capable to offer coil handing solutions that meet higher international standards.

3. Manufacturing quality control

Precision machine tool, skilled workers, from spare parts preparation to equipment assembly, our machine can offer real--time manufacturing update for our valued customers.From raw material control, spare parts inspection and machine assembly, our factory implements a strict quality control process. We commit to offer coil performance. All work are just for making sure all the products of machines are qualified.
FAQ

1. What can we do if the machine broken?

1.The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.

2. Does only one machine can produce one style panel profile?

Not Exactly. For wide and double layer making machine, it can produce more than 6 kinds of panels.

3. How long the machine could be made?

Normally speaking, the machine would be finished around 45 days. If you need a machine in hurry, we can shorten that period within 30 days.

4. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.

5. Do you have after sales support?

Yes, we are glad to support advice. Our technicians avaliable across the world.

6. How to get the quotation?

1.Give me the profile drawing and thickness,this is the important.
2.Other spicific requirements is welcome,such as the speed,power and voltage you want.
3. If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
