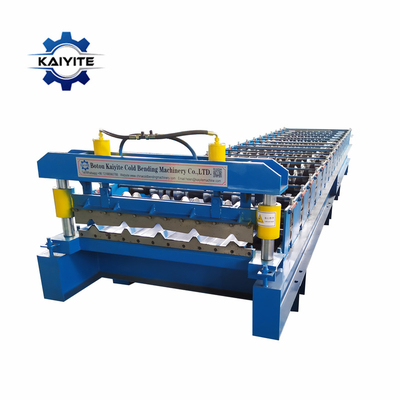

Colour Steel IBR Roof Tile Roll Forming Machine is very popular in the world now , it plays a fairly important role in the steel struction building . As to the shape of this sheet like trapezoid , so we call it trapezoidal tile or IBR sheet . With this IBR roof and wall tile , your house will looks more beautiful and can protect your roofing of house well and give you a safty & warmly home.
No. | Type | Specification | |
1 |
Row Material | Type | Colored steel plate, galvanized board |
Feeding width | According to requirement | ||
Thickness | 0.3-0.8mm | ||
2 |
Main body | Roller station | 15 steps |
Diameter of shaft | 70mm | ||
Shaft material | 45# Steel | ||
Roller material | 45# Steel | ||
Frame | 350H steel | ||
Frame thickenss | 14 mm | ||
Operation | Manual and Automatic | ||
Working speed | 8-12 m/min | ||
Size (L*W*H) | About 78600*1550*1510mm | ||
Weight | About 3.5 Tons | ||
Cutting type | Hydraulic cutting | ||
Material of blade | Cr12 | ||
3 | Power | Motor power | 4 kw |
Hydraulic power | 3 kw | ||
Voltage | 380V 50Hz 3phases or Customerization | ||
Driving way | By Chain | ||
5 Tons Decoiler -- Feeding and Guiding Table -- Main Roll Forming Machine -- PLC Control System -- Hydraulic Cutting Device -- Product Receiving Table
* 5 Tons Manual Deciler......................................1 Unit
* Main roll forming system.............................1 Unit
* Hydraulic system..................................1 Unit
* PLC Control Cabinet....................................1 Unit
* Receiving table.........................2 Unit
* Spare Part................1 Unit
If you like our tiles, please tell us, or you can provide us with the cross section, we can do the corresponding design.
This type of sheet play a very important role in the steel structure building . It is widly used in warehouse, workshop, roofing and other part. In a word , it has a large market.
Our machine has passed ISO9001, CE, SGS and so on.
If you want to learn more about this machine or has any questions , please contact us freely .
