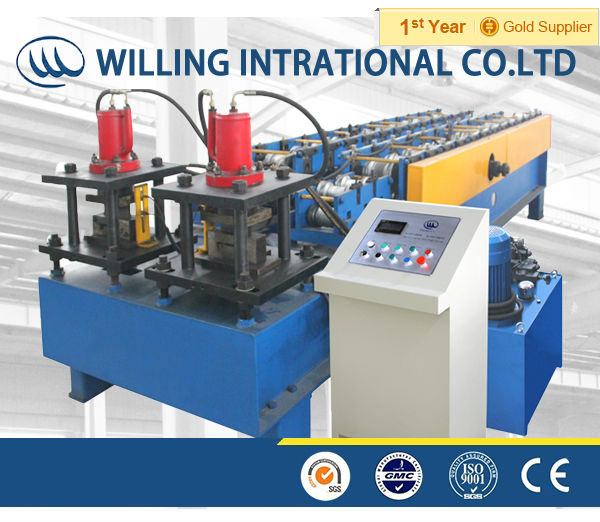

Rolling shutter strip making machine
1.We do Best, About Machine
1) To produce the best machine, WILLING is taking EUROPEAN quality standard;
2) Choose the best material and components, and adopting our 10+ years experience;
3) WILLING achieves that the machine capacity is double of the competitors;
4) The machine working speed can be 7.5m/min;
5) Only 1 worker to operate for roll forming machine .
2.We do Detail, Machine Parameters
Product name | Rolling shutter strip making machine |
Material thickness | 0.3-0.8mm |
Effective width | 125mm |
Host big frame | steel welding |
Forming axial | φ70mm |
Shaft | high grade No.45 steel after treatment |
Made board | 14mm |
Roller material | 45# steel polished and coated with chrome HRC55-60° |
Drive | chain |
Chain specification | 0.6 inch |
Equipment total power | 3kw |
Hydraulic power | 3kw |
Working speed | 8-10m/min |
The rolling electric plating thickness | 0.05mm |
Cutting balde material | Gr12 steel after treatment |
3.We do Standard, Machine Components
For this machine, according to our company standard, we will offer you following components
as the standard configuration.
Passive Uncoiler | 1pc |
Guiding Equipment | 1pc |
Roll Forming Equipment | 1pc |
Post Cut Equipment | 1pc |
Hydraulic Station | 1pc |
PLC Control Penal | 1pc |
Supporter Table | 2pc |
Working Flow
Uncoiling→Sheet Guiding →Roll Forming→Pressing →Measuring Length & Shearing →Sheet to Support Table
Finished Product Profile
We can make and design what kinds of roll forming machine according to your profile drawings.
Product Details
The rolling shutter strip making machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,shearing device,hydraulic station,PLC control console and so on.
