Profile thickness between 0.5mm and 1.2mm GI or carbon steel 195-235Mpa
Coil width: 266mm
Effective width: 126±3
Following profile in only for customer reference, the exactly can be provide by customer
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 300mm Way of feeding: manual
Profile steel thickness between 0.8mm and 1.2mm
Main motor power:4kw, AC motor, side motor to save space (Brand: guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:10stations +1 station of rectify
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: ￠56mm material: SAE1045
Machine roll forming speed: 15m/min
Roll former has leveling bolts in the base for adjust the leveling
Machine base frame adopt H beam welding steel
In the main roll forming machine have 1 button for urgency stop if happen any malfunction.
Transmission: by chain, 1.0inch double line

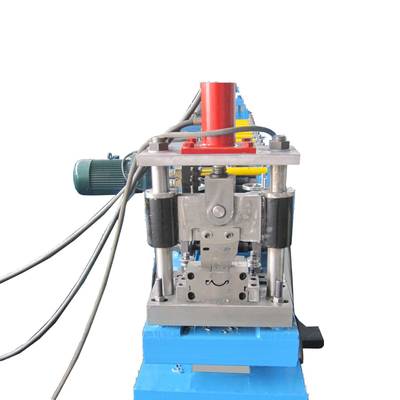

Machine adopt hydraulic cutting system, When cutting the machine will stop, after cutting will start the motion automatically.
Hydraulic power: 3KW
Hydraulic working pressure: 10Mpa
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.5mm
Hydraulic power: 3kW
Working pressure: 10Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)
If any needs or questions, feel free to contact me please.
We would like to design the machine for you
