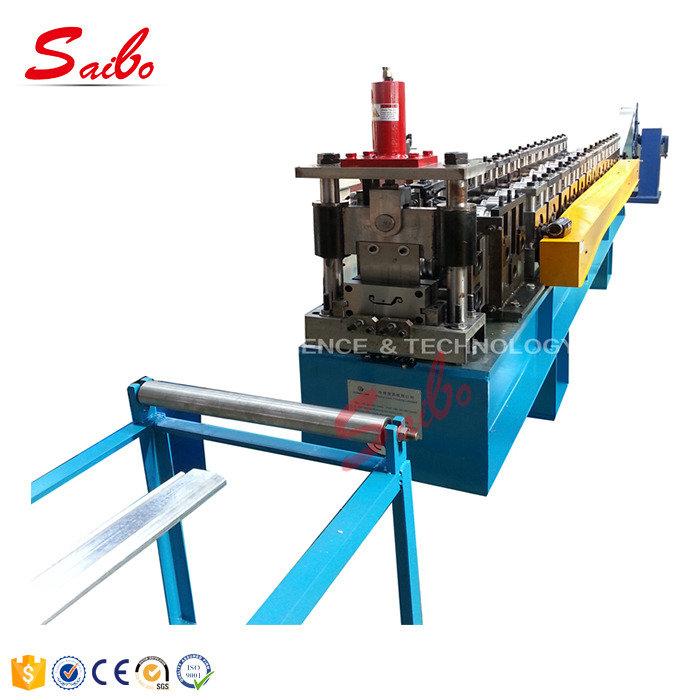

Hotels Rollig Shutter Door Cold Roll Forming Machine

Door Shutter

Door Shutter Roll Forming Machine is a color-coated steel plate that is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.

Door Shutter Roll Forming Machine.

A cold-bending forming machine is a machine that continuously bends a metal strip such as a coil or a strip by a multi-pass forming roll which is sequentially arranged to form a plastic working process of a specific section profile.

Features.

1. The equipment control is PLC control, and multiple safety protection is set during normal production.
2. The bed is welded with steel plates. It is also tempered to eliminate internal stress and avoid deformation of the fuselage.
3. The forming frame is cast iron structure and tempered. High strength and long service life.
4. The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.
5. The material of the forming mold is #45, quenching treatment, hardness: HRC 56-62 °C.
6. The transmission structure is chain transmission.

Forming section.

Main motor power : 7.5 kw
Roller Material : 45#, HRC58-62℃ ,coated with chrome
 DIA : ￠65mm

Shaft Material : 45# forge steel
Roller Stations : 14 stations

                            (according the final design)
Rolling Speed :15m/min

                         (not include cutting time)
Machine Voltage :380V, 50HZ, 3 phase.                                         According to customer's require

Cutting.

Machine adopt hydraulic cutting system,

Hydraulic working pressure: 12Mpa adjustable
Thydraulic power, 5.5KW
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.5mm

Operation and Maintenance :

1. If you need to adjust the machine, please firstly stop the machine before carrying out relevant operations.
2. Chain wheel, bearing and speed reducer of two / three / waves high road way guard rail roll forming machine should be lubricated regularly.
3. The forming roller should be kept clean.
4. With high performance in operation, two / three / waves high road way guard rail roll forming machine generates little noise.
