1, We do Best, About Machine

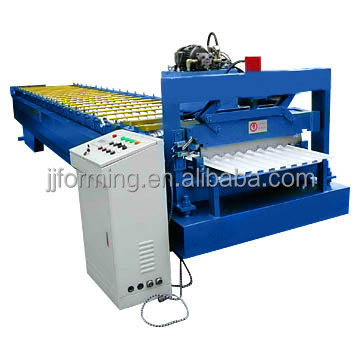

To produce the best rolling shutter strip making machine, Jingjing Machinery is taking EUROPEAN quality standard, choose the best material and components, and adopting our 15+ years experience, JINGJING MACHINERY achieves that the machine capacity is double of the competitors, the machine working speed can be 25m/min, and only 1 worker to operate.
Please take few minutes to have a look in detail as following.
2, We do Detail, Machine Parameters
Product name | rolling shutter strip making machine | |||
NO. | Item | Parameter | Remark | |
1 | Suitable
Material | Type | PPGI /PPGL/GI / AL/PVC | Custom |
Width | 300-1250mm | Custom | ||
Thickness | 0.30-1.20mm | Custom | ||
2 | Product Specifications | Length | Programmed by computer |
|
Length Tolerance | ±2mm/6m |
| ||
3 | Working Speed | 15-25 m/min (new technology) | Standard machine | |
4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom | |
5 | Total Power | About 5-15 KW | Up to final design | |
6 | Total Weight | About 5-15 T | Up to final design | |
3, We do Standard, Machine Components
For steel roller shutter roll forming machine, according to our company standard, we will offer you following components as the standard configuration.
| No | Component Name | Quantity | Description | |
| 1 | Decoiler | 1set | Wide range and multiple type Decoilers are available | |
| 2 | Main Roll Forming Machine | Feeding &Guiding device | 1set | New technology for smooth feeding along straight way |
Pre cutting device | 1set | Optional | ||
Embossing device | 1set | Optional | ||
Leveling device | 1set | Optional | ||
Punching device | 1set | Optional | ||
Step Pressing device | 1set | Optional | ||
Rolling forming system | 1set | High quality and New technology for Durability and Reliability | ||
Cutting device | 1set | New Tech from North America for high Efficiency | ||
| 3 | Output System | 1set | Auto stacker or Normal run out table for your option | |
| 4 | Auto Control System | 1set | AMS,SIEMENS,MITSUBISHI,etc for your option | |
| 5 | Hydraulic System | 1set | Top hydraulic brand | |
| 6 | Safety System | 1set | Fixed or Movable safety guard for operator safe | |
| 7 | Coolant System | 1set | Optional | |
3.1 Separate Auto Decoiler
The pressing guage which assembled on the decoiler can monitor the hydraulic pressure on site.
3.2 Feeding Device
The new technology feeding figuration is equipped to make sure sheet going forward smoothly and straightly.
3.3 Forming System
The experienced engineers design the best forming rollers, which make sure to get top quality finished panel.
3.4 Cutting device
Guiding pillar cutting frame, improve the precision and working life time.
3.5 Hydraulic station
Best hydraulic components, make the stable and fast system.
3.6 Auto Control system with excellent performance
Equipped with high grade PLC and Inverter to realize the programmed production .
4, We do Your life, Applications
Use our solution, build your beautiful house, enjoy your happy life, have sweet dreams.
5, Why JINGJING MACHINERY
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. JINGJING MACHINERY People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
5), Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. JINGJING MACHINERY is ALIBAB’s Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
6, About JINGJING MACHINERY
To be best partner in your great business, JINGJING MACHINERY keeps exploring the best solution for all world market.
The following photos show here we do the works for you.
7, Contact JINGJING MACHINERY
Thanks very much for your time, welcome to contact JINGJING MACHINERY, we are with you within 24 hours.
We want to know following information.
1), What is the exact profile you want to produce?
2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?
3), What kind of decoiler and stacker you need?
