Features

Specifications

Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Food & Beverage Shops, Advertising Company, Other

Showroom Location: None

Condition: New

Type: Roll Forming Machine

Tile Type: Galvanized Steel

Use: Door

Production Capacity: 8-20 M/min

Voltage: 380V 50HZ 3P Or Customize As Customer' Request

Dimension(L*W*H): 4.2*0.8*1 M

Weight: 1500 Kg

Warranty: 2 Years, 2 Year

Key Selling Points: Easy To Operate

Rolling Thinckness: 0.8-1.2 Mm

Feeding Width: As Customer Need Product Drawing

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: Hot Sell Product 2021

Warranty Of Core Components: 2 Years

Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Material Type: Galvanized Steel

Export Port: Tianjin Port

Need Container: 1*20 Feet

Machine Color: As Customer' Need

Control Box Language: As Customer' Need

Machine Cutter Material: Cr 12

Roller Material: Cr 12

Length And Piece Measure: By Counter

Control System: PLC(detla) System

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: None

After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support

Basic Infomation

Payment & Shipping Terms

Packaging Details: Packed with waterproof cloth and card board in container

Supply Ability: 50 Set/Sets per Month

Product Description

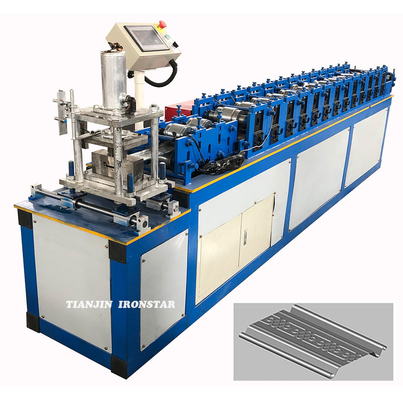

Punching hole shutter door machine | rolling shutter door machine | slat door machine

we are the professional shutter door machine manufacturer in China, and we export shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc. Common shutter door rolling thickness from 0.7-1.2 mm, material use PPGI or GI material all ok. Size can customize can your need size, machine details is like up:

Specification

Working flow

Decoiler-- roll forming machine-- PLC control box-- hydraulic cutter- Run out table

NO.	Item	Specification
Material	Raw material	Galvanized steel
Material		Thickness	0.7-1.2 mm
Puncher	Punching capacity	25T, automatic working
Machine	Roller station	14
		Shaft diameter	55 mm
		Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
		Roller material hardness 30-40 HRC	Cr12
		Machine size	About 4.20.81 m
		Machine weight	About 1.5 tons
		Machine color	As customer need
		Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
		Cutting tolerance	± 1mm
		Material	Cr12
		Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
		Main motor	4 KW
		Pump motor for cutter	3 KW
		Voltage	380V/50HZ, 3P or Customized as customer' request
Control system	PLC brand	Delta made in Taiwan
		Screen	Touchable screen
		Language	Chinese and English or add customer need language
Decoiler	Operation	Manual
		Weight capacity	3 Tons
		Price	Free as gift
Receive table	Operation	Manual
		Length	3 m
		Price	Free as gift

Details Images

Machine Process steps.

Machine making process mainly include below steps:

Machine working video

If u want to see the machine working video, please contact with miaomiao with any way below.

More for you choose

1. Shutter door roll forming machine

Shutter door machine | rolling shutter machine | rolling shutter strip making machine

2. Punching hole shutter door roll forming line

Punching hole shutter door machine | rolling shutter door machine | slat door machine

3. U guide rail shutter roll forming machine

U guide rail roll forming machine machine | slide rail forming machine | shutter door track machine

We are the professional U guide rail roll forming machine manufacturer in China, and we export U guide rail roll forming machine all over the world like Pakistan, Algeria, Morocco, Saudi Arabic, Oman etc. Common U guide rail roll forming machine rolling thickness from 1-2 mm, material use GI material. Size can customize can your need size, machine details is like up:

4. Door frame roll forming machine

Door frame roll forming machine | steel door frame bending machine | window frame making machine

We are the professional Door frame roll forming machine manufacturer in China, and we export Door frame roll forming machine all over the world like Pakistan, Algeria, Morocco, Saudi Arabic, Oman etc. Common Door frame roll forming machine rolling thickness from 1-2 mm, material use GI material. Size can customize can your need size, machine details is like up:

5. Austria shutter door roll forming machine

Austria shutter door roll forming machine | Austria shutter door machine | Austria shutter former

We are the professional Austria shutter door roll forming machine manufacturer in China, and we export Austria shutter door roll forming machine all over the world like Pakistan, Algeria, Morocco, Saudi Arabic, Oman etc. Common Austria shutter door roll forming machine bitten thickness from 0.3-0.6 mm, material use PPGI material. size can customize can your need size, machine details is like up:

6. Austria shutter door seaming machine

Austria shutter door seaming machine | shutter door seaming machine | slat door bitten machine

We are the professional Austria shutter door seaming machine manufacturer in China, and we export Austria shutter door seaming machine all over the world like Pakistan, Algeria, Morocco, Saudi Arabic, Oman etc. Common Austria shutter door seaming machine bitten thickness from 0.3-0.6 mm, material use PPGI material. Austria shutter door seaming machine comon include 4m, 6m, 8m long, size can customize can your need size, machine details is like up:

7. PU foam shutter door roll forming line

77 55 60 PU foam shutter door machine | pu shutter door roll forming line

We are the professional pu sandwich shutter door machine manufacturer in China, and we export pu sandwich shutter door machine all over the world like Pakistan, Algeria, Morocco, Saudi Arabic, Oman etc. Common pu sandwich shutter door rolling thickness from 0.3-0.6 mm, material use PPGI or Aluminum material. Size can customize can your need size, machine details is like up:

Company Profile

Tianjin Ironstar Industry Co., ltd is one professional roll forming machine manufacturer, 26 years working experience and 400 worker provide service for you. Products mainly include: Trapezoidal steel roof/wall panel machine, Glazed tile roofing roll forming machine, C U channel, Angle bead, Omega and T bar machine, Shutter slat door, door frame roll forming machine, C&Z shape interchangeable machine, Cap ridge, water gutter roll forming machine, cutting, bending, slitting, curving machine, floor deck and other customized machine etc.

We machine sell

Our customer

We roll forming machine sell to lots of countries in the world, like Malaysia, Indonesia, Philippines, Nepal, India, Russia, Kyrgyzstan, Azerbaijan, Ukraine, Poland, Italy, Guiena, South Africa, Tanzania, Ethopia, America, Bolivia, Chile, Guyana etc

FAQ

1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 24 months, all technical staff are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
