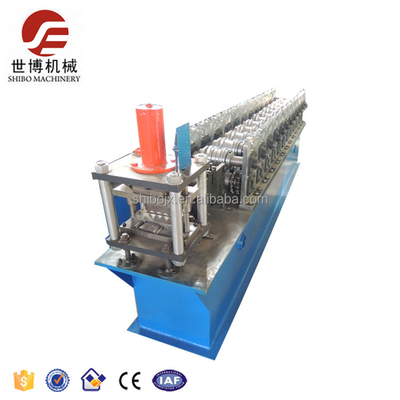

Rolling shutter door making machine roller shutter slat roll forming machine made in China
The chart of process flow
Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —computer control system—hydraulic cutting—product to stand
Equipment technical parameters
Molding host | Model | Shibo- shutter door forming machine |
Forming size | 4500mm*1500mm*1300mm | |
weight | 2.5 T | |
Host big frame structure | Frame welded | |
Roll station | 14row | |
Axial material | 45# steel | |
Out diameter of shaft | Φ75mm | |
Roller materials | 45# steel hard chromium plating | |
Drive | By chain | |
Sprocket chain | 1 inch | |
Main power | 4 + 4 kw | |
Working speed | 8-12 m/min | |
Material thickness | 0.3-0.8mm | |
| Made board | 25mm |
Hydraulic shearing
Material of blade | Cr12,heat treatment 60-62HRC |
Shearing system | shutters slat forming machine is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 3kw Hydraulic oil :40# |
Electrical system
Main computer control cabinet | shutters slat roll former adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computer mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within 1.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Transducer brand is EURA. The seller will provide Chinese and English language screen. |
Shibo- shutters slat roll former
We are responsible for the installation and debugging if you buy the shutters slat forming machine . Equipment parts are guaranteed for one year, Within a year of equipment parts
nonhuman damage(in addition to electric), we undertake free swap or maintenance for you.
Any question,please call informed.If you need other equipments,welcome to land our
website:http://www.shibojx.en.alibaba.com Or you can contact me immediately
Botou City ShiBo Machinery CO.LTD, founded in 2001, specialized in Design,
Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private
enterprise .With many years’experience, we have developed many new products of
Profiling Equipment, which rich the Color Steel Profession, make our machinery more
reasonable, artistic and practical and obtain the consistent high praise of the new and
old customers.
Q1:If our country's voltage is different from yours, how to solve that?
A1:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2:We bought your Rolling shutter door making machine roller shutter slat roll forming machine made in China, but we couldn't install and debug it?
A2:Don't worry about that, when finished the machine, we will send you the manual book which shows how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3:About the after service, what you can serve?
A3:All the machines are two years guaranteed, life maintenance. We can send the technician abroard, but you should pay the round-trip cost.
