Shutter door roll forming machine
Product Descriptions
The shutter door is a door or window that consists of a number of horizontal bars (or sometimes strip or mesh systems) that are hinged together. On the door, the action may be maneuverable. It provides weather protection and protects windows from vandalism and burglary.
Rolling shutter doors have many applications, including vans, garages, kitchens, schools, prisons and warehouse doors. In some parts of the world, rolling shutters are subsidized by local governments due to inherent safety concerns. In areas that are frequently exposed to inclement weather, the rolling door is used as an insulation method and the window can be protected from hail damage.
Version to design
Working Flow
Uncoiler --Punching -- Roll forming-- Hydraulic cutting -- Output table
Product Parameters
|
Suitable material |
Color steel sheet , galvanized steel sheet, |
|
Main motor power |
5.5 KW with Cycloidal reducer |
|
Thickness of material |
0.3mm~0.8mm |
|
Hydraulic station power |
3KW(Lichao,Shanghai) |
|
Hydraulic oil |
36#,40# |
|
Diameter of principal axis |
50mm |
|
Material expand width |
140-180mm |
|
Electric tension |
380V 3phase 50HZ or as the customer's requirements |
|
Material of roller |
Cr12 steel quenched |
|
Processing speed |
15-20m/min |
|
Processing precision within |
About 10m |
|
Material of cutting blade |
Cr12Mov with quenched treatment |
|
Kind of drive |
Gearbox |
|
Roller station |
13 Roller Station |
Main Components
|
Component of roller shutter door roll forming machine |
|||
|
Name |
Quantity |
Units |
|
|
Decoiler |
1 |
Set |
|
|
Main Machine |
Feeding device |
1 |
Set |
|
Roll forming system |
1 |
Set |
|
|
Cut Equipment |
1 |
Set |
|
|
Hydraulic system |
1 |
Set |
|
|
Electric control system |
1 |
Set |
|
|
Supporter/Automatic Stacker |
1 |
Set |
|

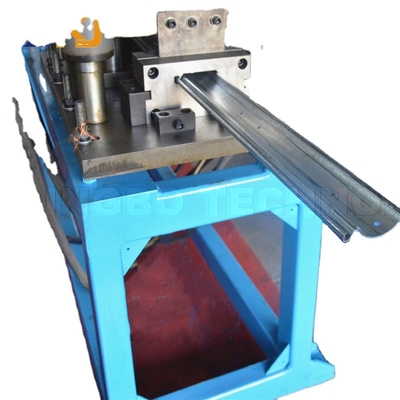

Machine Pictures
Application pictures
1. Q: What's the warranty period? (24hours online)
12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.
2. Q: Do you have installation and commissioning service?
A.If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.
B. If buyer need we will send technician to buyer site to do installation and commissioning and training.
C.installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100/per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.
(Normally ,It takes about a week to install )
3. Q: What’s your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
4. Q: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time
5. Q: You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
6. Q: Do you provide customized machine?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
7. Q: How to place order ?
Inquiry---confirm the profile drawings and technical specification and price----confirm the PI---arrange the deposit or L/C---start production-- do inspection--- Shipment
8.What are your terms of payment ?
First payment: 30 % by T/T, second payment: 70% by T/T, after the successful inspection at seller’s workshop, and before delivery.
