Act as cable tray bracket, it can be used for the installation of horizontal and vertical trays, and to support cable trays fixed on the wall, column and floor to stabilize the cable tray system.
Act as pipe bracket, it refers to a bracket used to support a pipe, usually mounted on a building or installed in a pipe gallery.
Act as anti-seismic brackets, it is a anti-seismic measures installed on electromechanical piping equipment. The installation of anti-seismic bracket can avoid and reduce damage to the electromechanical equipment in the building caused by earthquakes, to reduce the harm of earthquakes and protect people's lives and property.

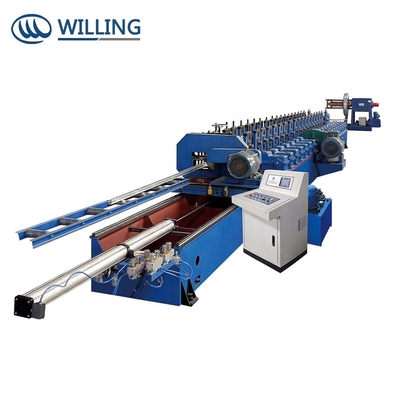

| Material | CR coil, GI coil |
| Size | 41*21mm; 41*41mm; 41*62mm; 41*82mm |
| Thickness | 2.0-2.5mm |
| Feeding width | 93-229mm |
| Strength | Q235-345Mpa |
| Speed | 0-12m/min |
| Size tolerance | 1mm |
| Cutting way | Non-stop cutting |
| Power | 22kw+15kw |
| Roller material | Cr12MoV |
| Cut blade material | Cr12MoV |
| Dimension | 25000*1600*1500mm (L*W*H) |
| Total weight | about 20tons |
