Components of Machine and Main Description |
||
|
Components of Machine |
Main Description |
|
|
1 |
Automatic hydraulic uncoiler(according the machine and your requirement) |
1.Loading Capacity:Max:5 Tons |
|
2.Main motor:3 KW |
||
|
3.Coil Width:Max:1250mm |
||
|
2 |
Entry Bench |
Guiding the raw material into the roll forming machine smoothly |
|
3 |
Feeding Section with guide |
Easily for the raw material entry |
|
4 |
Main forming machine |
Forming the panel according your requirement |
|
5 |
PLC control system |
Automatically control the quantity of sheet, cutting length, step length |
|
6 |
Cutting blade |
Cutting the panel automatically |
|
7 |
Product Rack |
Can adjustable according the length of the panel (3 units) |
|
8 |
Pressing device |
Pressing the panel automatically |
|
9 |
Mesh cover above roll former(optional) |
Avoid hand go inside the forming machine |
|
Technical Parameters (some depend on the final design) |
||
|
1 |
Style |
Z60-150 |
|
2 |
Machine Dimension (mm) |
12000*1500*1500 |
|
3 |
Total Wight (Kg) |
6000 |
|
4 |
Forming Steps |
12 |
|
5 |
Forming Speed (m/min) |
Approx.10 |
|
6 |
Hydraulic Station Power(KW) |
7.5 |
|
7 |
Diameter of Shaft (mm) |
75 |
|
8 |
Electric Condition |
380V/3Phase/ 50HZ |
|
9 |
Power for Hydraulic Uncoiler(KW) |
2.5 and 3 |
|
10 |
Recoiler Max Capacity (KGS) |
10000 |
|
11 |
Control System |
PLC |
|
12 |
Raw Material Thickness (mm) |
1.5-3.0 |
|
13 |
Effective Width(mm) |
60-150 |
|
14 |
Material Width(mm) |
132-276 |
|
15 |
Serial Number |
A2011001 |
|
Feature: |
|
1. Cutter Material: Cr12MoV1 mould steel with heat treatment |
|
2. Shaft Material: Cr12 mould steel with heat treatment |
|
3. Roller Material:40Gr mould steel with heat treatment, hard Chrome Coated |
|
4. Delivery time:30% deposit and balance before delivery |
|

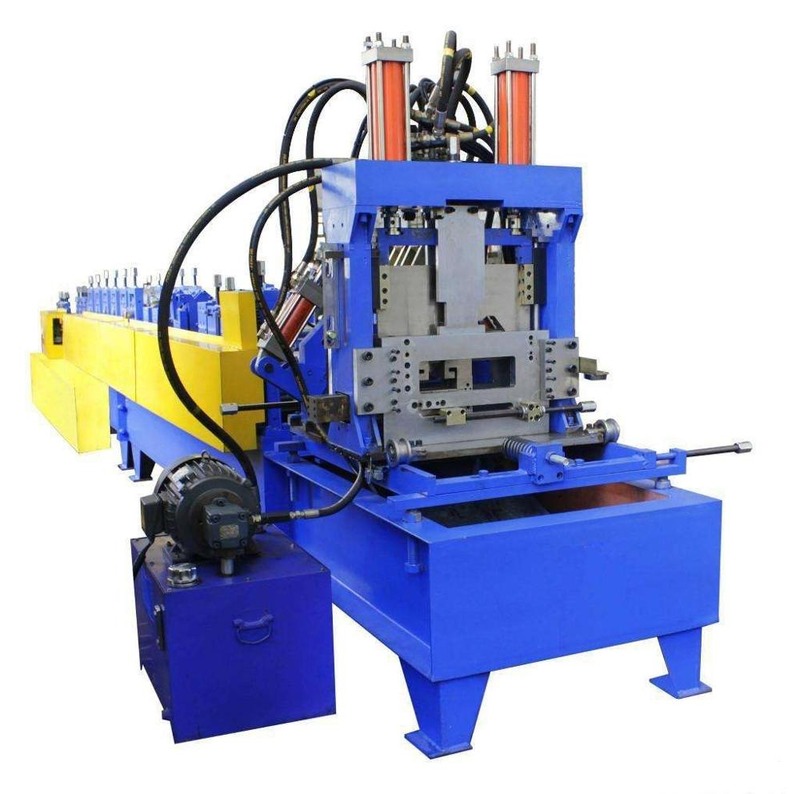

5. This product line to produce C-purlin with pre-punching and pre-cutting |
|
6. Widely used in various industrial, factory, villa building, civilian building, warehouse and have features such as nice appearance and durable |
|
7. We can manufacture various kinds of machines to satisfy our customer, you can also provided the drawings what you want or the samples, we will design the project for you accordingly |
