Home /Products/Purlin Roll Former/Steel Type Purlin Profile Hotels Automatic Color C Z Steel Section Roll Forming Machine

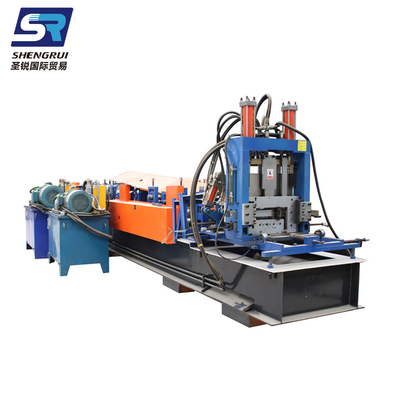

Steel Type Purlin Profile Hotels Automatic Color C Z Steel Section Roll Forming Machine

1 Set
MOQ
$158,000.00(1 - 2 Sets) $139,000.00(>=3 Sets)
Price
Steel Type Purlin Profile Hotels Automatic Color C Z Steel Section Roll Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Steel Frame & Purlin Machine
Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Construction Works , Advertising Company
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Work Pressure: 0.7MPa
Production Capacity: 10-20m/min
Voltage: 380V
Power: 37KW
Dimension(L*W*H): Uncertain
Weight: Kg
Warranty: 1 Year
Key Selling Points: High-accuracy
After Warranty Service: Video Technical Support
Local Service Location: Turkey
After-sales Service Provided: Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: Container or wooden case for storage shelf roll forming machine.
Supply Ability: 10 Set/Sets per Month
Product Description
C Purlin Roll Forming Machine


Un-coiler
Max Capacity :
5T
Inner diameter of coil :
≤508mm
Type :
Manual or Automatic









Main Forming System
Thickness of sheet :
3mm
Material :
GI sheet coil or Colored sheet coil
Roller material :
Cr12
Surface of Roller :
Heat treatment HRC58-60
Diameter of main shaft :
75mm #45 steel, heat treat modulation
Forming station :
13 stations.
Transmission :
by chain and gear
Measuring accuracy :
+/- 0.5 mm/M
Output :
8-10 Tons per shift (8 hrs.).
Speed:
10-20m/min



Hydraulic Cutting Device
Cutting way :
Tracking (Flying)
Oil pump station :
1set
Motor power of Oil pump station :
7.5kw with cooling system.
Cutting mould :
1 set
Material of blade :
CR12 with heat treatment HRC60-62
