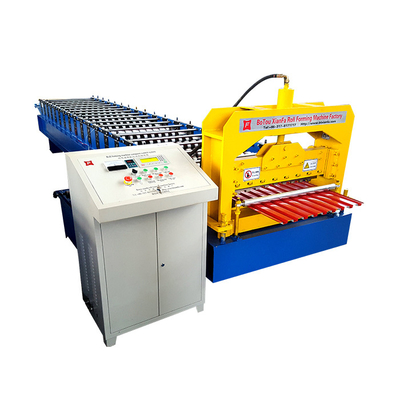

aluminium roller shutter door production roll forming machine price
main parameter:
|
No. |
main parameter of roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
914mm |
|
3 |
Rollers |
18rows |
|
4 |
Dimensions |
8.58*1.45*1.51m |
|
5 |
Power |
4+4kw |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Weight |
About 3.6T |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC contro |
The Chart of Process Flow:
manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table
Components and Technical Specification
1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4.Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC:EURA
5.Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
6.Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
Main Roll Forming Machine:
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Main machine is nude , the computer control box is packed by carton box.All machines needs one 40 feet container to hold. Within 45 days after receipt of advance payment.
Our company is a manufacturer of roll forming machine. At present, our products have been exported to more than 70 countries and regions over the world, and maintained good cooperative relations with customers .We do firmly believe :technological innovation ,making every detail of the product perfect is our ambition ever.
|
Main product catagories |
color steel roll forming machine, classical glazed tile forming machine, double layer roll forming machine,C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line,fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment. |
|
Profession |
Botou Xianfa Roll Forming Machine Factory is professional manufacturer and exporter and specializes in designing, manufacturing, developing, sales and services in roll forming machine . |
|
Experience |
We are proud of our own professional team with more than 18 years’ experience in customized design and manufacture, installation and test, technical solution and after services. All the machines are with international quality standards and great after-sales services. |
|
Location |
We are located in Botou city,Hebei,near Beijing, with convenient transportation access. We have been establishing and keeping good business relationship with more than 70 countries of worthy clients all over the world, mainly locating in East Europe, Middle East, South and West Asia, Africa and South America. |
There are honors we have gained:
|
Technology R&D |
We have R&D centers and innovative designing teams for different kinds of production lines. |
|
Quality Control |
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards. |
|
After Sale Service |
Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot. |
|
Inspected by the Sellers |
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop. |
|
Inspected by the Buyers |
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories. |
