Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

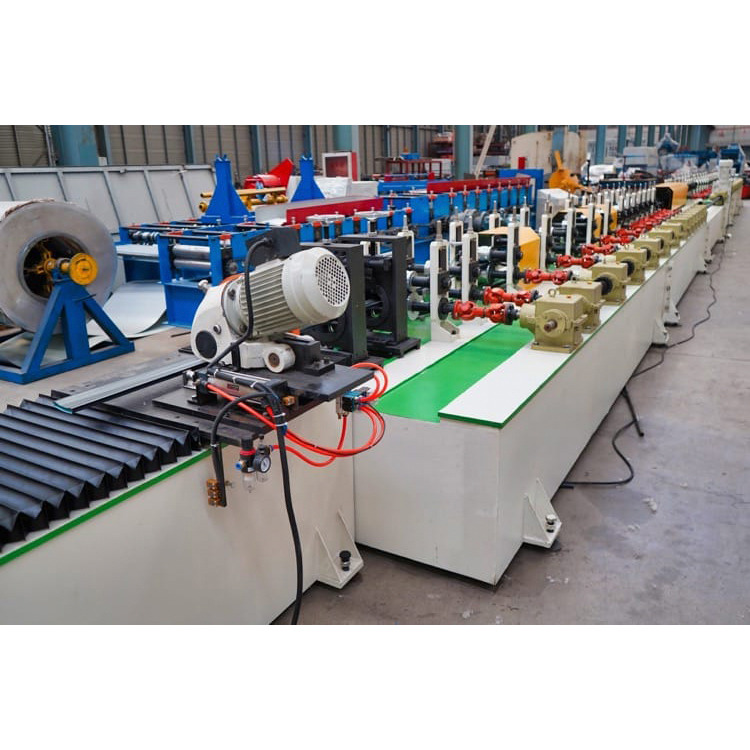

| Name | PU roller shutter door roll forming machine |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range |
According to your actual drawing. |
| Electric Power |
according to your need. |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
| Uncoiler Loading capacity: 5T Inner diameter: 470-530mm Steel coil width :914, 1000, 1220, 1250 mm.According to your actual drawing. Working speed: 0-15m/min, adjustable |
|
| Cutting system Material of blade :Cr12MOV, much better than normal Cr12 material Hydraulic power :3KW |
|
| Feeding table It is used to control the width and position of the steel sheet. The sheet is quided into the machine with correct position ,to make sure the panel is neat and parallel |
|
|
Forming rollers According to your actual drawing |
|
| Main frame Material :350 H steel Feature:more table, no shaking |
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
