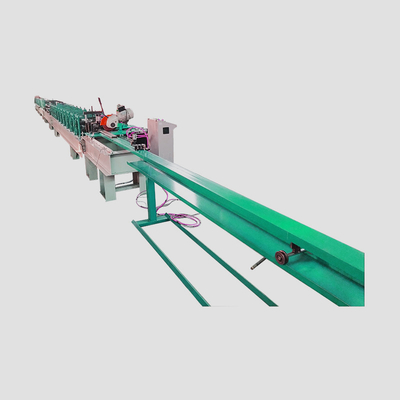

Hotels 0.7 - 1.0mm Sheet Thickness PU Foam Rolling Door Slat Roller Shutter Forming Machine

1 Set
MOQ
$18,000.00(1 - 2 Sets) $17,500.00(>=3 Sets)
Price
Hotels 0.7 - 1.0mm Sheet Thickness PU Foam Rolling Door Slat Roller Shutter Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction Works , Food & Beverage Shops, Advertising Company
Showroom Location: None
Condition: New
Type: Tile Forming Machine
Tile Type: Steel
Use: ROOF
Production Capacity: 10-15M/MIN
Voltage: 380v
Dimension(L*W*H): 200000*1300*900mm
Weight: 6000 Kg
Warranty: 2 Years
Key Selling Points: Long Service Life
Rolling Thinckness: 0.3-0.8mm
Feeding Width: Other
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2022
Warranty Of Core Components: 2 Years
Core Components: Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name: PU Foam Rolling Door Slat Roller Shutter Forming Machine
Raw Material: Steel Coil GI PPGI
Cutting Blade Material: Cr12 Mould Steel
Shaft Material: High Grade No.45 Steel
Control System: PLC(detla) System
Certification: CE ISO
Main Frame: Steel Plate Welded
Roller Stations: 40Stations
Motor Brand: Lichao
Decoiler: 5T Manual Decoiler
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: PU foam roller shutter door machine packed with waterproof cloth and card board in container
Supply Ability: 30 Set/Sets per Month
Product Description
Product Overview

55 77 82 95mm PU foam roller shutter door machine




Our company are professional product the pu foam shutter door roll forming machine manufacture , We manufacture and supply variants of shutter door roll forming machines in China, such as pu foam shutter door roll forming machine ,door frame roll forming machine , guide rail roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
PRODUCT SPECIFICATIONS
No
TYPE
Data
SPECIFICATION


   1

Raw material
material
PPGI GI
2
Bucket capacity
Feeding width
as drawing
3
Operating weight
thickness
0.5-1.2mm

   2


Decoiler
operate
manual
5
Max. breakout force
weight capacity
3ton







  3







Roll forming machine
roller station
40
Diameter of shaft
55mm
Roller material
45# with 0.05mm chrome
Frame
steel sheet welding
Frame thickness
16mm
Cutting Material
Cr 12
Operation
automatic cutting
Working speed
15-20m/minute


  4


Power
Driving way
chain
Main motor
4kw
Voltage
380v 50hz



  5



                   Control systerm
Electric box
PLC control system, inventer
PLC brand
delta
Inverter brand
delta
Language
chinese and english

Feature of the pu foam shutter door machine

The components of the pu foam shutter door machine include: decoiler, roll forming machine body, hydraulic cutting, plc control system, main motor, pump station, receving table.
Equipment features: shutter door machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Detail image
Decoiler

Pic just for reference,It is used to stand the steel coil and uncoil, keep them working stably.
Loading capacity: 3tons

Pneumatic following cutter
Automatic cutting as target products length Blade material: Cr12, quenching treatment
Roll forming body
Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
computer control system
Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
Polyurethane system
A glue+B glue forming PU
Viscosity: A: 0.4~0.7 Pa•s B: 0.3~0.6 Pa•s Strength:>10 N/cm2
Control box: Chinese+English

More choose for you
shutter door roll forming machine
Our company are professional product the shutter door roll forming machine manufacture , We manufacture and supply variants of shutter door roll forming machines in China, such as pu foam shutter door roll forming machine ,door frame roll forming machine ,guide rail roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
shutter door u guide rail roll forming mahine
Our company are professional product the shutter door u guide rail roll forming machine manufacture , We manufacture and supply variants of shutter door roll forming machines in China, such as pu foam shutter door roll forming machine ,door frame roll forming machine ,guide rail roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
Door frame roll forming machine
Our company are professional product the door frame roll forming machine manufacture , We manufacture and supply variants of shutter door roll forming machines in China, such as pu foam shutter door roll forming machine ,door frame roll forming machine ,guide rail roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
PU foam shutter door roll forming machine
Our company are professional product the shutter door pu foam roll forming machine manufacture , We manufacture and supply variants of shutter door roll forming machines in China, such as pu foam shutter door roll forming machine ,door frame roll forming machine ,guide rail roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
Company Profile
Cangzhou abena industry co., ltd is specialized in the production of roll forming machinery.Our company was established in 2006,it is located in the cangzhou city of hebei Province , which is the center of the business and economy.
Main products: roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine,light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment. and soon. any requires please contact us
Payment &Delivery
Packing and shipping
FAQ
A. Foreign commissioning
We will arrange our professional engineers to help you install and debug the machine well. Buyer should pay$100 for each engineer every day and responsible for transportation (including round-trip ticket), insurance, and suitable accommodation.
B.Warranty period
1.The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.
C. Training
During installation and adjustment of the equipment, our engineers are able to provide the training that buyer’s personnel request to operate and maintain the equipment.Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Services
Lifetime services to every customer.
Welcome to contact and visit us.Waiting for your cooperation sincerely.
