Features

Specifications

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Garage Door Roll Former Chrome Coated Shutter Door

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam

Condition: New

Type: Tile Forming Machine

Tile Type: Colored Glaze

Use: WALL

Production Capacity: 5--15m/min

Voltage: 380V, 380V(According

Dimension(L*W*H): 12m-15m

Weight: 5 Kg

Warranty: 1 Year

Key Selling Points: Easy To Operate

Rolling Thinckness: 0.3-0.8mm

Feeding Width: 1220mm

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Garage Door Roll Former Chrome Coated Shutter Door

Usage: Construction

Control System: PLC(imported Brand)

Roller Material: 45#steel Chrome Plated

Cutting Blade Material: Cr 12 High Grade Steel

Material Of Rollers: 45# Cr Plated

Function: Stable

Material Thickness: 0.3mm-0.8mm

After Warranty Service: Video Technical Support

Local Service Location: United Kingdom

Basic Infomation

Payment & Shipping Terms

Packaging Details: naked for 40 feet container for China Manufacture Popular Design Profile Roller Slate Door Making Roll Forming Machine Garage Door Roll Former Chrome Coated Shutter Door Roll Forming Machine

Supply Ability: 20 Set/Sets per Month Garage Door Roll Former Chrome Coated Shutter Door Roll Forming

Product Description

Description	offered specification
Material thickness	0.7-1.2mm
Raw material	Galvanized coils yield strength ≤G250MPa
Forming speed	8-15m/min
Decoiler	3 Ton passive decoiler
Material of main shaft	45# high quality steel
Levelling device	7 roller levelling including 3 top rollers and 4 bottom rollers
Cutting	hydraulic cutting; quenching HRC58-62
Motor power of hydraulic station	4kw
Hydraulic station pressurre	12Mpa
Tolerance	6m+-1.5mm
Machine Frame	H Beam Steel

_{Working flow

De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table

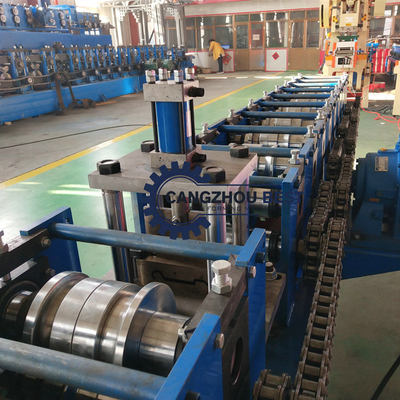

Machine component

3T Passive De-coiler
Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg

Leveling device

1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Max Leveling Raw Material width: 300mm

Hydraulic station

1. hydraulic station pressure: 12MP
2. power of hydraulic station: 4KW

Hydraulic Cutting

1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will
automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm

Control Box

(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)
(2)Length & quantity measurement automatically;
(3)Length & quantity controlled by PLC,
(4)Length inaccuracy can be amended easily.
(6).Control panel: Button-type switch and touch screen
(7)Unit of length: millimeter (switched on the control panel)

Output Table

Length : 2m
Quantity: 2 units}

FAQ

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need
your machines running in order to keep your business running.

3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick
up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then
we can pick up you.

4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts
freely,but you need pay the express cost yourself.if after warranty period,we can
through negotiation for to solve the problems,and we supply the technical support for the whole life of the
equipment.

5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting
various types of cold roll forming machines.

7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on
developing how to make machines much more automatic, accurate and high quality. We can make sure
