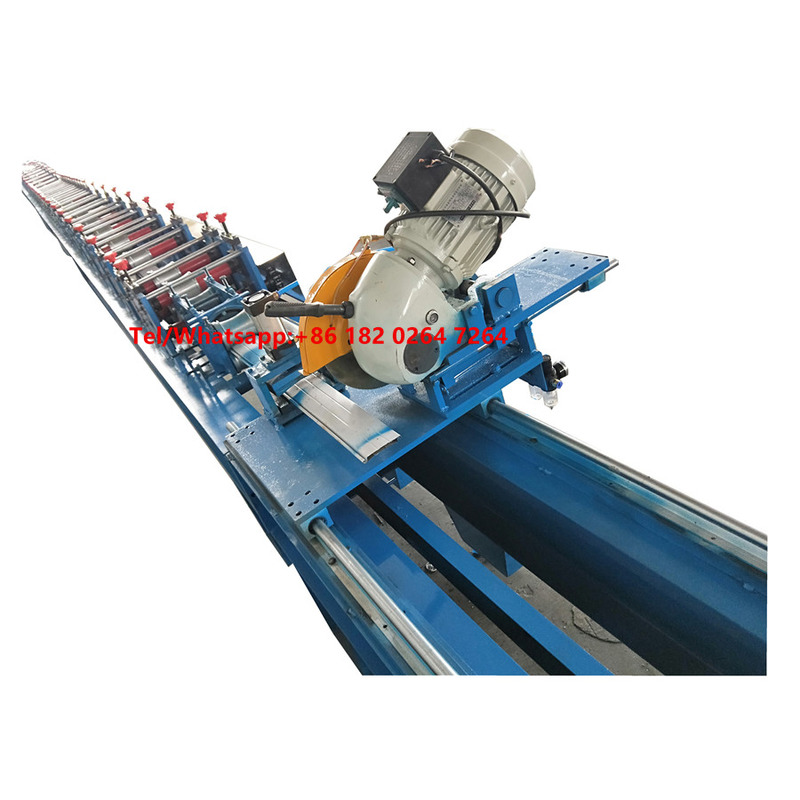

This PU Foam Shutter Door Slat Roll Forming Machine is total automatic . PU foam shutter door can stop the cold air into the house by door and keep your home warmer than normal door in winter , that why it is os popular in so many cold place in winter. Its raw material is steel strip . Usually the forming speed is 8-15 meter /min , if the clients require a fast speed , we can also produce it for you .
* 3 Tons Manual Deciler......................................1 Unit
* Main roll forming system.............................1 Unit
* Foam Machine..................................1 Unit
* PLC Control Cabinet....................................1 Unit
* Product Receiving table.........................1 Unit
* Spare Part................1 Unit
|
No. |
Type |
Specification |
|
|
1 |
Row Material |
Type |
Colored steel plate, galvanized board, aluminum plate |
|
Feeding width |
According to the profile |
||
|
Thickness |
0.2-0.3mm |
||
|
2 |
Main body |
Roller station |
22 steps (According to the profile) |
|
Diameter of shaft |
50mm |
||
|
Shaft material |
45# Steel |
||
|
Roller material |
45# Steel |
||
|
Frame |
200mm H Steel |
||
|
Frame thickenss |
14 mm |
||
|
Operation |
Manual and Automatic |
||
|
Working speed |
8-12 m/min |
||
|
Size (L*W*H) |
About 22600*950*1510mm |
||
|
Weight |
About 9.0 Tons |
||
|
Cutting type |
Hydraulic cutting |
||
|
Material of blade |
Cr12 |
||
|
3 |
Power |
Motor power |
4 kw |
|
Hydraulic power |
3 kw |
||
|
Voltage |
380V 50Hz 3phases or Customerization |
||
|
Driving way |
By Chain |
||
3 Tons Decoiler -- Feeding and Guiding Table -- Main Roll Forming Machine -- Foam Machine -- PLC Control System -- Cutting Device -- Product Receiving Table
We can design machine according to customer's requirement .
The shutter door can better protect your house from wind, rob, fire and so on. In order to give your family a more safe condition, please install the shutter door. The roll salts shutter door roll forming machine has the advantage of easy operating , easy installation , and recycle use . In a world , It will be more and more popular with a large market .
Welcome all the friends from all over the world to visit us . If you visit us , we can have a talk face to face , what's more , you can better know our factory and machine.
Our machine has passed ISO9001, CE, SGS and so on.
If you want to learn more about this machine or has any questions , please contact us freely .
