Customized Gutter shape steel purlin Machine

1 Set
MOQ
$18,000.00(1 - 1 Sets) $17,000.00(>=2 Sets)
Price
Customized Gutter shape steel purlin Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Condition: New
Type: Rain Gutter Machine
Tile Type: Rain Gutter
Use: ROOF
Production Capacity: 15 M/min
Voltage: 380V
Dimension(L*W*H): 8500*1200*1500mm
Weight: 6500 Kg
Warranty: 1 Year
Key Selling Points: Easy To Operate
Rolling Thinckness: 0.3-0.8mm
Feeding Width: Customized
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor, PLC
Basic Infomation
Payment & Shipping Terms
Packaging Details: Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
Supply Ability: 40 Set/Sets per Month
Product Description

Product Certification

CE Certified.Valid from 2020-07-18 until 2025-07-18

Packaging & Delivery

Selling Units: Single item

Single package size: 8500*1200*1500mm
Single gross weight:6500.000 kg
Package Type:nude
Lead Time :within 35 days

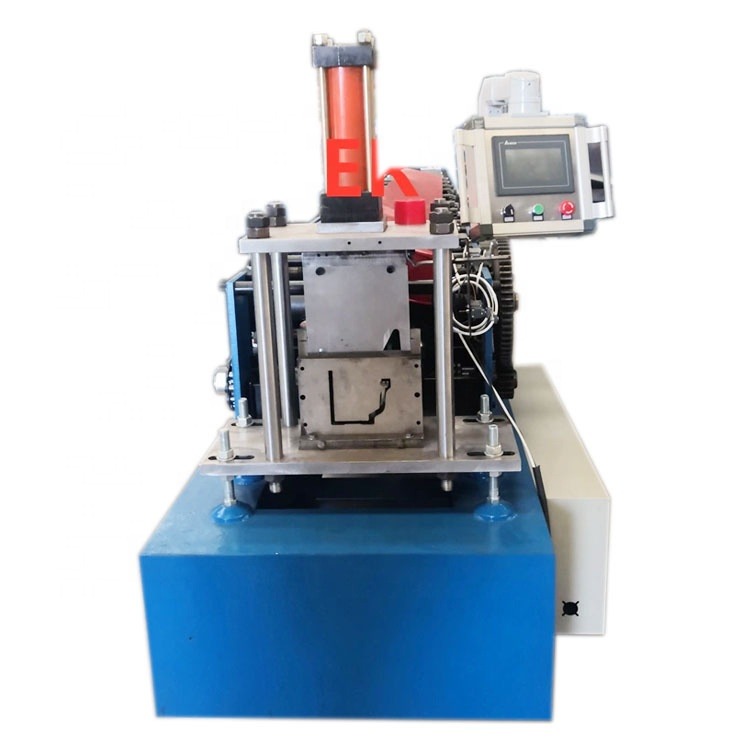

                   Customized Gutter shape steel purlin Machine
This roof gutter roll forming machine is for steel or aluminum sheet cold form industries. It can form rain gutter profiles according to customer’s requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production. Therefore, it is really a new type of energy-saving and high-effective equipment for metal rain gutters. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
Here are some popular drawing for your reference

Machine Parameters
Material Type Pre-painted steel coil & galvanized coils
Thickness 0.3-0.8mm
Yield strength 235Mpa.Q345Mpa, Q550Mpa
Roller material

Quenched and tempered treatment, hard chrome coated.05-0.07mm
Forming speed About 15-20m/min
Speed adjusting mode AC Frequency
Roller drive          Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Panasonic or Delta PLC
Main motor 5.5KW
Hydraulic station motor 4KW



Feeding Part:
     1 Positioning plate Adjust the position of both ends to make it fit the width of the feed
     2 Guide frame Play a role in supporting the transport of the material roll
     3 Guide roller The upper and lower round rollers are designed to make the feeding process more smooth


Roller Assembly:
   1 Main roller diameter 70mm
   2 Roller material 45 # steel,Heat treatment, hard chrome plating after finish turning, mirror polishing
   3 Frame tie rod 20 # electroplate round steel to increase rigidity on both sides of wall panel
   4 Roll forming Roll forming process of coil



Cutting After Forming:
   1 Guide mechanism make the knife holder cut smoothly without deformation of the cut.
   2 Cast iron tool holder obvious shock absorption effect and strong impact resistance
   3 Blade material Cr12Mov The cutting life exceeds 1 million times
   4 Rear scissor frame Q235 steel plate, annealing treatment after rough turning,  finishing.



Product Features
1. More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.


 Certification

Company Profile


 FAQ
1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 12 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 10 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.
4. Will i receive a good machine ? Same with my wanted ?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
5. What is the machine minimum quantity?
One machine is okay.
6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
