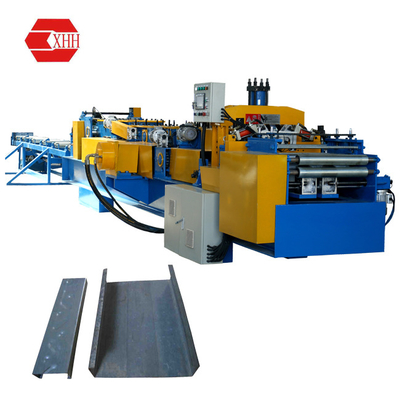

60-300mm Automatic GI Channel Z Purline Gutter Strut Channel Roll Forming Keel Machine

1 Set
MOQ
60-300mm Automatic GI Channel Z Purline Gutter Strut Channel Roll Forming Keel Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Steel Frame & Purlin Machine
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Condition: New
Work Pressure: 350V/50HZ/3PH
Production Capacity: 20set/month
Voltage: 350V/50HZ/3PH
Power: 20KW
Dimension(L*W*H): 12000*1600*1600MM
Weight: 9000KGS
Warranty: 1 Year
Key Selling Points: Low Noise Level
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Forming Speed: 8-16m/min
Cutter Material: Cr12Mov
Roller Material: GCr15
Material Width: 122-485mm
Effective Width: 60-300mm
Material Thickness: 1.2-3.0mm
Servo Motor: 18.5-22KW
Hydraulic Motor: 11KW
Forming Steps: 16+3
After Sales Service Provided: Engineers Available To Service Machinery Overseas
Certification: SGS
Basic Infomation
Certification: SGS
Payment & Shipping Terms
Packaging Details: 1.Machine is fixed in the container with steel ropes so that the machine is kept from being collided 2.Nude in the container or as your requires
Supply Ability: 20 Set/Sets per Month
Product Description

1. Specifications of the C Purlin Fully Automatic C60-C250 Profile Adjustable Roll Forming Machine

1)Main Techincal Data:

Size7800mm*1600mm*1600mm;
Weight7000KGS
Hydraulic Motor Power18.5KW
Motor Power for adjusting C size 0.37kw*2+0.75kw
Motor Power for Guiding0.18kw*2
Motor Power for adjusting puching hole0.18kw*2
Forming Steps13+3steps for reshaping
Processing Speed8-25m/min
Voltage380V/50HZ/3PH
Forming Thickness1.0mm-3.0mm
Effective Height of Purlin30mm-70mm
Effective Width of Purlin60mm-250mm

2)Main Accessories:

(2) .5 Ton Manual Uncoiler;

(3). Hydraulic Punching Device;

(4) .Hydraulic System;

(5) .PLC Computer Controlling System With Touch Screen; (Brand:Delta or Schneider,or Siemens,choose any one)

(6) .Hydraulic Forming Cutter;

(7) Tools;

(8) Operation Manual.
