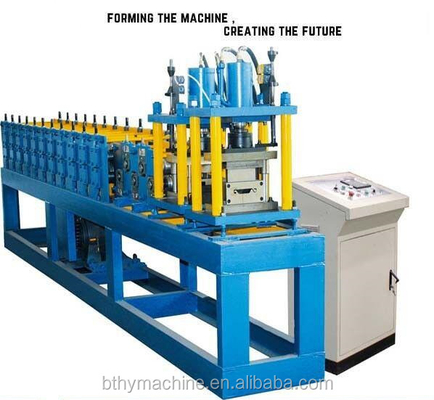

Specification of Shutter Door Roll Forming Machine
Forming and Cutting: Cut the sheet after roll forming to required length
Material of blade: Cr12, 58-62 HRC hardness
Hydraulic power : 3KW
Length measuring : Automatic encoder length measuring
Tolerance of length : +/- 1.5mm for each piece
Roller Station: 12 rows
Roller/Shaft Material: No.45 steel, roller surface polishing , with heat treatment
Shaft diameter :40mm
Motor Power: 3KW
Capacity: 15-20m/min
Volume:0.8*0.8*1.3m
Voltage: 380V 50Hz 3Phase , or customized
PLC Brand : Delta or Customized
Language: English,Spanish,Russian, Chinese
Control panel: Button or Touch Sreen
HMI : Easy to operate
Power: 4kw
Hydraulic oil: 46# hydraulic oil
Working pressure:12-16Mpa adjustable
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
Dimensions: 1500*1000*800
Inner Diameter: 450-508mm
Capacity: 5T
We also have Hydraulic Decoiler for 5T to 10 T .
Size: 3*1*0.8m
Quantity: 2 sets
We also have Auto stacker for automatic production line .
Botou Hongyuan Forming Machine Co.,Ltd has been established in 2005 as a professional manufacturers of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more then 10 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China. We manufacture various kinds of roll forming machine for producing the following products.
Our Service:
1) Color ,Size,Profile can be customized
2) We accept various of payment terms,like:T/T,L/C,Trade Assurance etc
3) If you visit our factory,we can pick you up at station/airport
4) Short delivery time,aroung 20 days after received your deposit.
Installation and training:
1)If buyers visit our factory and check the machine,we will teach how to install and use the machine and also train your workers/technican face to face.Without visiting,we will send you manual and video to teach you install and operate.
2)If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
