shutter door bottom roll forming machine, rolling shutter bottom beam roll forming machine, roll up shutter door bottom roll forming machine
Main Specifications:
1 Materials to form shutter door: 0.6-1.2mm galvanized coils, Feeding width: 184mm
2 Forming steps: about 27 stations
3 Material of rollers: Cr40 steel precision-machined, high frequency quenching HRC58-62,
4 Material of main shaft : 45# high quality steel (diameter>50mm)
5 Chains’ material: 45# steel, high frequency quenching, circular pitch:38.1; number of teeth: 13
6 Cutting: hydraulic cutting; quenching HRC58-62
7 Electronic control: PLC control Panasonic Brand
8 Dimension of machine: 11500mmX650mmX800mm
9. Working speed:12-15m/min
10 Drive system: chain drive
11 7.5KW*2 main motor power
12. Water cooling syste
Machine Components
| Name | 1 set |
| De-coiler | 1 set |
| Guide device | 1 set |

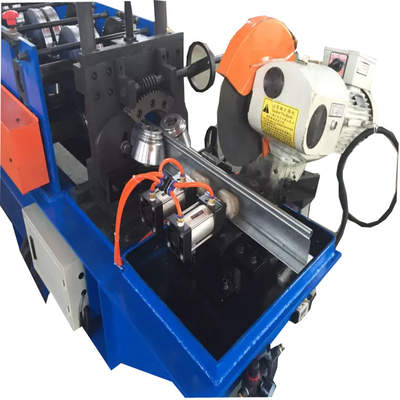

| Fly saw cutting | 1 set |
| Main roll forming machine | 1 set |
| Control system | 1 set |
| Run out table | 2 units |
Working Flow
De-coiler—feeding with guide——→main roll forming machine—→flysaw cutting —→ run out table
Standard Profile and Drawing
Our machines
Application
Package
Customers& Exhibition
Company Information
Wuxi Suhang Machinery manufacturing Co., Ltd. is specialized in building materials of light steel structure.
Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking
roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine,
Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit,
Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects,
Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
Suhang machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation
and advantageous location which supply good business opportunities for the buyers home and abroad.
