Technique Data
1. Suitable Plate Material: thickness 1.0~1.2mm, Galvanized steel S235JR
2. Working Speed: 12-15 meters / min
3. Forming machine: 18~25 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel
6. Driven system: Chain Driven
7. Main Power with reducer: 7.5 KW
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 5.5KW
11. The whole machine is controlled by industry computer-PLC.
12 PLC: Panasonic, Japan English and Chinese Language
13. Touch Screen: Delta Brand
Working Flow
decoiler—→level device—→main roll forming machine—→hydraulic cutting—→ run out table
Machine list
De-coiler
Roll Leveler
Pressing machine
Hydraulic punching device
Main roll forming machine
Hydraulic station
Cutting
PLC Control box
Out tables
Spare parts
| Name | Number | |
| Tools | Feeler gauge | 1 |
| Size spanner | 1 | |
| Inner hexagon spanner | 1 | |
| Clamp | 1 | |
| Standard spanner | 1 | |
| Shifting spanner | 1 | |
| Slotted screwdriver | 1 | |
| Other accessories | Chain | 6 pieces |
| Chain connector | 20 pieces | |
| Bearing (Haerbin) | 20 pieces |
Profile drawing for reference
(We will design according to customer's profiles or samples)

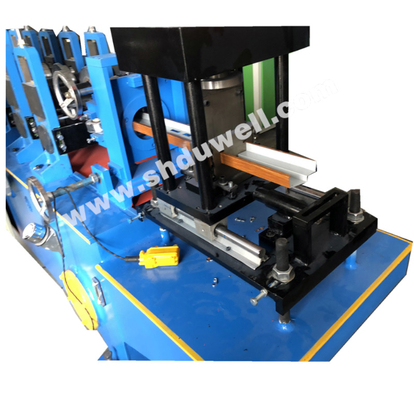

Machine pictures
Shanghai Duwell Industrial Co. Ltd is One Of The Leading Roll Forming Machine Manufacturers In China. Since Its Foundation Of 2005, Shanghai Duwell Industrial Co. Ltd Has Devoted Itself To The Research Of High Quality Products For Nearly 10 Years. With The Rich Experience And Sophisticate Technology, Shanghai Duwell Industrial Co. Ltd Gained High Reputations From The Customers All Over The World. The Machines Produced By Duwell Are Widely Approved In Steel Structure Industry, Vehicle Industry, Door And Window Industry, Decorating And Fitting Material Industry, Physical Distribution And Supermarket Shelf Industry, Transportation Industry, Wiring Industry, Electrical Equipment Industry, Elevator Industry And Various Projects With Pipe Industry.
Shanghai Duwell Industrial Co., Ltd factory locates in Wux City Jiangsu province China, approx. 30 minutes far from Shanghai by train.
