Features

Specifications

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Food & Bevera

Showroom Location: Peru, India

Condition: New

Type: Shutter Door Making Machine

Tile Type: Glazed Steel

Production Capacity: 20M/MIN

Voltage: 380V/50Hz/3Phase

Weight: 3000 Kg

Warranty: 1 Year

Key Selling Points: Easy To Operate

Rolling Thinckness: 0.6-1.2mm

Feeding Width: Other

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: Motor, Engine

Raw Material: PPGI PPGL GI GL PPAL

Roller Material: 45#steel Chrome Plated

Cutting Blade Material: GCr 12 High Grade Steel

Main Frame: 400-500# H-beam Steel Welded

Cutting Type: Servo Tracking Cutting

Control System: PLC(imported Brand)

Shaft Material: 45# Steel Processing

Motor Brand: Lichao

Operate Style: Automatic Operate

Electric: World Famous Brand

Basic Infomation

Payment & Shipping Terms

Packaging Details: sea worthy packing

Product Description

Production Description

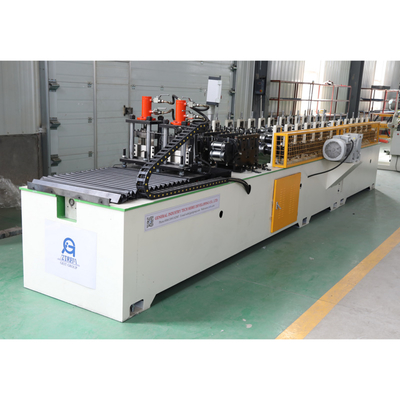

Metal Material Shutter Door Roll Forming Machine

Here we share one article about the rolling shutter slat machine-single rolling shutter machine. As to the single roller shutter slat means the slats roll formed from galvanized steel or colour steel without PU insulation. The raw materials are typically 0.6-1.2mm GI steel or PPGI steel. There are so many different sizes of single slats that it's not possible to list all roll formers. Generally, one regular single rolling shutter slat roll forming machine can make only one slats, with punching holes optional.
In whatever corner on the earth, developed countries, developing counties or undeveloped countries, rolling shutter doors are everywhere. However, not everybody uses the same roller shutter doors. For example, in developed countries, people prefer PU insulated rolling shutter door for Shop, Garage, Warehouse and even office buildings etc. But in other areas, we may see rolling shutter doors joint with single steel slats or just panels. Overall, any country in the world may use different rolling shutters, buy they all use rolling shutters. So all ove the whole world, there are many types rolling shutter profiles.

Technical specification

Process Flow:

Uncoiler--Punching--Guide Feeder--Main Roll Forming Machine--Hydraulic Cutter--Collecting Product Table

Item	Specification
Decoiler	a. Coil inner diameter: 450-550mm b. Coil max width: 300mm c. Max carrying capacity: 3T
Perforation machine	a.Material of mold: Gcr12MoV quenched b.Power: 3kw c.Punch speed:12m/min d.Thickness: 0.8-1.0mm
Roll forming machine	a. Number of forming steps: 12 stations b. Shaft material: 45# steel with quenched treatment, precision machined, c. Roller material: bearing steel with quenched treatment d. Transport: by gearbox+chain e. Forming speed: 5-15m/min f. Motor:5.5kw
Shearing system	a.The material of blade: Cr12Mov,Hardening HRC 58-62ºC b.Length Tolerance:3m±1.0mm C. Power supply: Hydraulic station
Hydraulic station	a. Hydraulic motor Power:3kw b.Hydraulic oil: 46# c.Hydraulic pressure : 12Mpa
PLC station	PLC control system, we will take Delta . You can set the cutting length in the PLC.

Product Features

1 More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can
get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life
of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.

Company Developing

General Industry tech Hebei Developing Co., Ltd (GEIT) is aimed at providing our customers with the best quality metal rolling automation solutions and after-sale s service. At present, our company has more than 10 years of designing and making the cold roll forming machine, and our products have been sold to more than 60 countries and areas, achieving good fame. GEIT are capable of and confident with our product that will make its name in China and will be famous in the world. Backed with the powerful technology and the perfect market service system, and holding the idea of globalization, we have expanded our international market step by step. Opportunities accompanying with challenges, and we are always full of confidence.

Why Choose Us

1. Equipment research and developing
Our company commits to provide customized coil processing solution according to each customer's specific metalworking process.
With experienced technical technical team and continuous researching investment, we are capable to offer coil handing solutions that meet higher international standards.

2. Manufacturing quality control
Precision machine tool, skilled workers, from spare parts preparation to equipment assembly, our machine can offer real--time manufacturing update for our valued customers.From raw material control, spare parts inspection and machine assembly, our factory implements a strict quality control process. We commit to offer coil performance. All work are just for making sure all the products of machines are qualified.

FAQ

1. How to get the quotation?
1.1.Give me the profile drawing and thickness,this is the important.
1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.

2.Do you have after sales support?
Yes, we are glad to support advice. Our technicians available across the world.

3. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.

4. What can we do if the machine broken?
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
