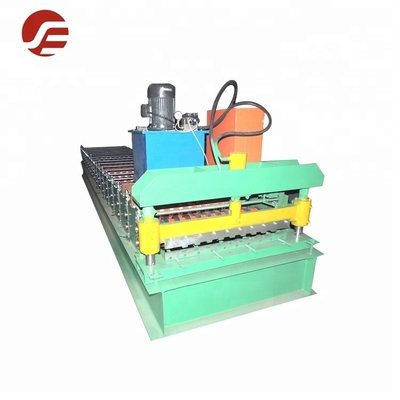

Australian style Hydraulic Cutting Metal Roller Shutter Door Roll Forming Machine
1. The main parts consist of the whole line of shutter door machine
--Australia Shutter Door Roll Forming Machine
--Seaming machine to connect the product
--Rolling machine to make the coil
--Punching hole machine
2. The efforts we made to meet clients' demand
In order to meet the requirements of customers ,there are four main sectors in our company , which are purchase ,sales,storage and transportation .With highly effective operations, reasonable prices and timely delivery , our company have established a well-known brand in the steel industry and have won high praise of customers and colleagues .
3. Main specifications of machine
| Productivity | 8-12 m/min |
| Raw Material | Aluminum, galvalume, galvanized and pre-painted galvanized steel. |
| Thickness | 0.5 mm to 0.8 mm. |
| Main motor power | 5.5 kw. |
| Hydraulic station power | 4 kw. |
| Feeding width | Depends on the model of profile. |
| Yield stress | 235Mpa(33KSI) ~ 350Mpa |
| Cutting Tolerance | +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm) |
| Manual Uncoiler | Max. Capacity: 3000kgs |
| Coil inner diameter | 508mm/610mm. |
| Voltage | 380v/50hz/3 phase |
| Numbers of stands | 12 stands/stations/pairs for each roll forming system |
4. FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world
We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
5. Australian-style Hydraulic Cutting Metal Roller Shutter Door Roll Forming Machine details as below
