Put the steel coil on the un-coiler—→Feeding guide equipment—→Roll-forming Machine—→Foaming machine —→Adjusting device —→ Punching device----Flying saw cutting—→finished products on stacker
Un-coiler
Leveling device

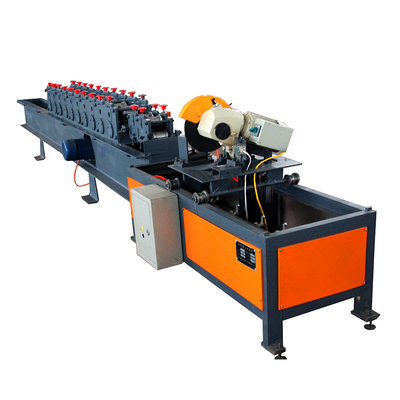

Main forming machine
Foaming machine
Adjusting device
Pneumatic following cutting device
PLC Control system
Finished product shelf
1. Suitable plate: as customize
2. Working speed: 10-12 m/min
3. Steps: 36+1
4. Material of roller: GCr15 advanced steel, precision-machined, high frequency quenching HRC58-62
5. Material of main roller: #45 advanced steel (Diameter: ￠40)
6. Driven: Gear, Gimbals
7. Main power: 7.5KW
8. Cutting: Pneumatic following cutting
9. Material of cutting knife: Cr12Mov, Quench HRC58-62
10. Cutting power: 2.2KW
11. The whole machine is controlled by industry computer-PLC. Including:
PLC: PANASONIC (Japan)
Touch screen: PANASONIC (Japan)
Rotating coder: Omron (Japan)
Transducer: PANASONIC (Japan)
12. Dimension of the whole line: 22000mm length
13. Weight: Approx. 12 Ton
14. Warranty time: one year
If any needs or questions, feel free to contact me please.
We would like to design the machine for you
